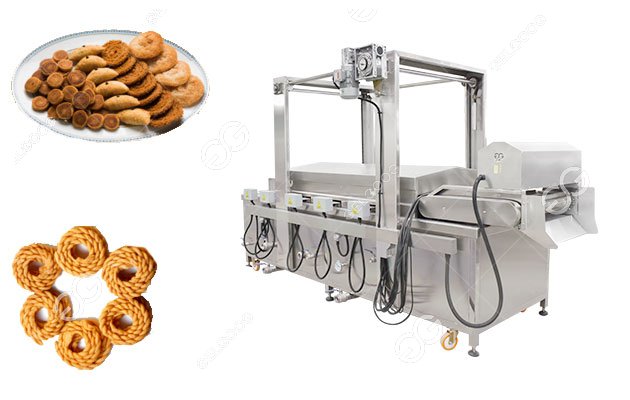

Continuous Operation Kurkure/Murukku Frying Machine
Automatic murukku frying machine adopts the upper and lower double-layer mesh belt design to prevent the product from floating, so the quality of the fried food is more uniform. In addition, the frying temperature can be adjusted according to different processes to achieve mass production. The continuous kurkure frying machine has a wide range of use and is suitable for foods with various frying techniques:potato chips , puffed snacks,chaklir .
Main Product Structure
Sewage outlet, exhaust outlet, circulating oil inlet, smoke outlet, lifting motor, top guard, motor guard, burner heating system.
Working Principle Of Murukku Frying Machine
The oil and water temperature can be set and controlled within a certain range through the natural air cooling system and the automatic cold water circulation system, which can effectively prevent the water from boiling, and the residue generated will be deposited in the water and discharged from the kurkure frying machine after the operation is completed, thereby ensuring the oil The cleanliness.
Kurkure Frying Machine Features
Main Product Structure
Sewage outlet, exhaust outlet, circulating oil inlet, smoke outlet, lifting motor, top guard, motor guard, burner heating system.
Working Principle Of Murukku Frying Machine
The oil and water temperature can be set and controlled within a certain range through the natural air cooling system and the automatic cold water circulation system, which can effectively prevent the water from boiling, and the residue generated will be deposited in the water and discharged from the kurkure frying machine after the operation is completed, thereby ensuring the oil The cleanliness.
Kurkure Frying Machine Features
- The 304 stainless steel material ensures a longer service life and higher sanitary conditions.
- Dynamic oil filtering system is used to keep the frying oil fresh at any time, which can effectively remove impurities in the oil and protect the oil quality.
- Optimized structure of the pot body reduces the amount of oil injected and the turnover rate of frying oil is high.
- kurkure frying machine and the conveyor belt can be separated freely, which is convenient for cleaning; vibration feeding, uniform feeding.
- Various energy sources such as electricity, gas and coal can be used.
- Combustion controller has automatic ignition and flameout protection to ensure safe use.
- Advanced and high-efficiency heating system, the frying oil heats up quickly and the oil temperature fluctuates little.
- Speed of the conveyor chain of the murukku frying machine is adjustable, and the corresponding time is set to meet the processing requirements of various products
- Continuous automatic operation, mass production, product standardization.
Model |
Belt width (mm) |
oil pump power (kw) |
lifting power (kw) |
heating power |
Dimension (mm) |
LZG3500A | 800 | 1.5 | 0.55 | 20Wkcal | 3700*1900*2400 |
LZG5000A | 800 | 1.5 | 0.55*2 | 30Wkcal | 5200*1900*2400 |
LZG6500A | 800 | 1.5 | 0.75*2 | 20Wkcal*2 | 6700*1900*2400 |
LZG8000A | 800 | 2.2 | 0.75*2 | 30Wkcal*2 | 8200*1900*2400 |
LZE3500A | 800 | 1.5 | 0.55 | 90KW | 3700*1600*2200 |
LZE5000A | 800 | 1.5 | 0.55*2 | 120kw | 5200*1600*2200 |
LZE6500A | 800 | 1.5 | 0.75*2 | 190kw | 6700*1600*2200 |
LZE8000A | 800 | 2.2 | 0.75*2 | 255kw | 8200*1600*2200 |
